Method of Operation
In STERILAIRE™ Room Air Sanitizers room air is drawn past washable electrostatic filters, then forced into an ultraviolet exposure chamber in which the air is subjected to powerful germicidal rays, past baffles and then reintroduced into the room.

The STERILAIRE Room Air Sanitizer provides effective germicidal treatment without the hazards associated with exposed ultraviolet lamps. Application of equipment is simple and straightforward.

Selection:
In selecting your STERILAIRE Room Air Sanitizer several factors should be considered.

STERILAIRE Room Air Sanitizers are selected to treat a given area based on the equipment room air changes per hour that the STERILAIRE Room Air Sanitizer is capable of treating.

To treat areas that are normally or well ventilated, we recommend selection of a STERILAIRE Room Air Sanitizer that will yield a minimum of three (3) equivalent room air changes per hour.

In areas that are poorly ventilated and areas that present a higher than usual risk of airborne infection (such as a crowded waiting room), installation of a STERILAIRE Room Air Sanitizer capable of six (6) equivalent room air changes per hour is recommended.

To select the appropriate STERILAIRE Room Air Sanitizer(s), first determine the desired number of equivalent room air changes per hour. Then calculate the total cubic feet per hour required to yield the desired number of equivalent room air changes using the following formula:

Room Size (cubic feet) x Room Air Changes = Cubic Feet per Hour

Once the volume of the area to be treated is known, Tables 1 and 2 can be used to select the most suitable STERILAIRE Room Air Sanitizer for your application.

TABLE 1
MODEL	NOMINAL MAXIMUM TREATMENT CAPACITY
MODEL 2 – RS	3600 CUBIC FEET PER HOUR
MODEL 3 – RS	8400 CUBIC FEET PER HOUR
MODEL 6 – RS (LOW SPEED)	17,700 CUBIC FEET PER HOUR
MODEL 6 – RS (HIGH SPEED)	26,100 CUBIC FEET PER HOUR

TABLE 2
MODEL	BLOWER CAPACITY	MAXIMUM ROOM SIZE TREATED 0.3 ROOM AIR CHANGES/HOUR	MAXIMUM ROOM SIZE TREATED 0.4 ROOM AIR CHANGES/HOUR	MAXIMUM ROOM SIZE TREATED 0.5 ROOM AIR CHANGES/HOUR	MAXIMUM ROOM SIZE TREATED 0.6 ROOM AIR CHANGES/HOUR
2 – RS	60 CFW	1200 CUBIC FEET	900 CUBIC FEET	720 CUBIC FEET	600 CUBIC FEET
3 – RS	140 CFW	2800 CUBIC FEET	2100 CUBIC FEET	1680 CUBIC FEET	1400 CUBIC FEET
6 – RS	435 CFW	8700 CUBIC FEET	8525 CUBIC FEET	5220 CUBIC FEET	4350 CUBIC FEET

STERILAIRE ROOM AIR SANITIZER MODEL 2-RS

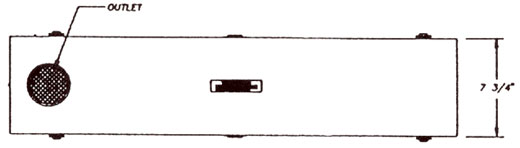

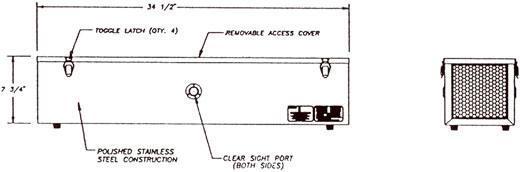

SPECIFICATIONS

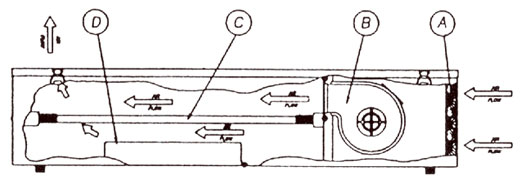

CUTAWAY VIEW

Permanent, washable electrostatic filter, 7-3/4” x 7-3/4” x 1”, metal frame.
Blower, shaded pole, squirrel-cage type, 115V 50/60 Hz, .42 amp, free air displacement: 60 CFM.
Germicidal lamp G24T6, instant start, rated effective life of 10,000 hours. Nominal overall length; 24” (including standard Lamp holders.)
Transformer (Ballast): 115V 50/60 Hz, .55 amp, 425 milliamps secondary.
Interlock safety switch; included feature disconnects power to unit when cover is removed for lamp or filter replacement. (Not shown)
Optional Key Lock Switch will insure tamperproof operation in either on or off position. (Not shown)
Optional Elapsed Time Indicator provides visual indication (in hours) of time that unit is in service.

Standard unit shown above includes free standing rubber feet – See Optional Mounting Bracket Sheet for optional painted finish.

Total electrical requirement: 1.0 amp, 115V 50/60 Hz

Unit weight: 24 lbs.
