Water Purifier

Ultraviolet/Germicidal water purification systems

Ultraviolet/Germicidal water purification systems from Hanovia…

…provide a fast, unique way to disinfect water without heat or chemicals. Using short-wave radiation from Hanovia germicidal ultraviolet lamps, STERITRON purifiers destroy all water-borne microorganisms, including bacteria and viruses. Hanovia germicidal lamps are found in a variety of applications, including personnel protection and prevention and prevention of cross infection in hospitals, laboratories and veterinary facilities and product contamination prevention in the food processing, pharmaceutical, bottling, electronics and semiconductor industries.

How the system operates:

  • Water enters purifier and flows into annular space between quartz sleeve and outside chamber wall.
  • Wiper segments induce turbulence in flowing liquid to ensure uniform exposure of suspended microorganisms to lethal ultraviolet rays.
  • Translucent sight port provides positive indication of germicidal lamp operation
  • Wiper assembly facilitates periodic cleaning of quartz sleeve without disassembly or interruption of purifier operation.
  • Water leaves purifier ready for use instantly.




Simple installation and maintenanceHow the system operates:

  • Install purifier as close as possible to the location in which it is to be used.
  • Connect inlet and outlet to water supply.
  • Plug into grounded electrical outlet.
  • Maintain by cleaning quartz sleeve with manual wiper once every month – more frequently where indicated by application conditions.
  • Recommended lamp replacement: Once every 10,000 hours of operation (approximately 14 months of continuous operation).



HANOVIA ultraviolet/germicidal lamp specifications:

STERITRON water purifiers deliver optimum performance when equipped with the following specially designed HANOVIA lamps. These HANOVIA low-pressure type lamps produce the germicidal rays needed for water purification with maximum efficiency and the added benefit of low power requirements. These lamps eliminate the possibility of overheating and the need for special equipment to deal with overheating.


Lamp No. Purifier Model No. Nominal Lamp Length Power Consumption (1) Ultraviolet Output (2) Rated Effective Life
9009A481 31946.001 8 15/16″ (227mm) 10 Watts 2.4 Watts 10,000 Hrs
9012A481 31946.101 11 7/8″ (302mm) 14 Watts 3.7 Watts 10,000 Hrs
9018A481 31946.201 17 3/4″ (451mm) 20 Watts 6.5 Watts 10,000 Hrs
9034A481 31946.301 33 7/8″ (860mm) 39 Watts 14 Watts 10,000 Hrs
9046A481 31946.401 45 7/8″ (1165mm) 50 Watts 19.3 Watts 10,000 Hrs
9047A481 31946.501 46 1/4″ (1175mm) 110 Watts 45 Watts 10,000 Hrs
  • Wattage is lamp watts only and does not include ballast loss.

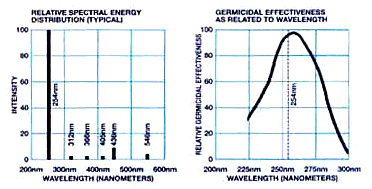

  • Maximum rated output at 254 nanometers.


Organism Type Ailment/Symptom **mu**Wsec/cm2
Streptococcus Bacteria Strep Throat 3,800
Dysentery Bacilli Bacteria Diarrhea 4,200
Influenza Virus Flu 6,600
Staphylococcus Bacteria Boils 6,600
Fecal Coliform Bacteria Diarrhea 6,600
Salmonella Bacteria Food Poisoning 10,000
Legionella Pneumophila Bacteria Legionnaires’ Disease 12,300
Bacteriophage(E. Coli) Virus Diarrhea 6,600

Lethal Exposure Times:

  • The dosage necessary to inactivate a microorganism is a product of time and intensity.
  • When used as directed, STERITRON purifiers will provide a dosage in excess of 30,000 microwatt seconds per square centimeter (**mu**Wsec/cm2).
  • Ultraviolet energy at 254nm is required for complete destruction of some microorganisms.




Standard Model Specifications:

Model GPM GPH Inlet and (5) Outlet Size Replacement Lamp(s) Power(6) Consumption Length Width Height Gross Wt. Net Wt. Cu. Ft.
31946.001 2 120 1/2″ NPT 9009A481 14 Watts 16 3/8″ 5 1/2″ 8 5/16″ 10 lbs. 7 lbs. 1.1
31946.101 3 180 3/4″ NPT 9012A481 18 Watts 19 3/8″ 5 1/2″ 8 3/16″ 11 lbs. 8 lbs. 1.2
31946.201 6 360 3/4″ NPT 9018A481 24 Watts 25 3/8″ 5 1/2″ 8 3/16″ 16 lbs. 11 lbs. 1.5
31946.301 12 720 1″ NPT 9034A481 44 Watts 39 3/4″ 5 1/2″ 8 3/16″ 27 lbs. 20 lbs. 3.3
31946.401 20 1,200 1 1/2″ NPT 9046A481 54 Watts 52 3/8″ 5 1/2″ 8 3/16″ 35 lbs. 26 lbs. 4.3
31946.501 40 2,400 2″ NPT 9047A481 140 Watts 50″ 8″ 13″ 51 lbs. 38 lbs. 7.5
31946.601 (1) 83 5,000 2″ NPT 9047A481 (2 Lamps) 280 Watts 50″ 22″ 16″ 116 lbs. 85 lbs. 15
31946.701 (2) 166 10,000 2″ NPT 9047A481 (4 Lamps) 560 Watts 50″ 22″ 33″ 267 lbs. 174 lbs. 37
31946.801 (3) 250 15,000 2″ NPT 9047A481 (6 Lamps) 840 Watts 50″ 22″ 50″ 400 lbs. 263 lbs. 57
31946.901 (4) 333 20,000 2″ NPT 9047A481 (8 Lamps) 1,120 Watts 50″ 22″ 67″ 534 lbs. 352 lbs. 77
  • Two 31946.501s connected in series, 1 inlet and 1 outlet.
  • Two 31946.601s connected in parallel, 2 inlets and 2 outlets.
  • Three 31946.601s connected in parallel, 3 inlets and 3 outlets.
  • Four 31946.601s connected in parallel, 4 inlets and 4 outlets.
  • All inlets and outlets are male pipe threads.
  • Total power consumption, including ballast loss
    – Maximum recommended operating pressure for all purifiers is 100 PSI
    – Pressure drop at maximum recommended flow rate is 5 PSI or less
    – All data shown above are for 118 volt 60 Hz. Units are also available for 220 volt 50 Hz and 12 volt DC operation.

Steritron water purification systems give you all these benefits:

  • STERITRON disinfection is lethal to all microorganisms.
  • Effluent is guaranteed to exceed United States Public Health Standards for bacterial purity.
  • Economically purifies hundreds of gallons of water for each penny of operating costs.
  • Safe operation with no danger of overdosing and no addition of dangerous chemicals.
  • No chlorine taste.
  • Easy installation and simple maintenance.
  • Space-saving compact units.
  • Choice of continuous or intermittent disinfection automatically.
  • Water ready for use the instant it leaves the purifier.
  • Corrosion-free stainless steel chamber, head, clamp and hardware.
  • Easy-off retainer cap for quick lamp change with no tools, water pressure shutdown or draining of tank.
  • Simple disassembly.
  • No special tools needed if repairs become necessary.
